Fully automatic offline washing series

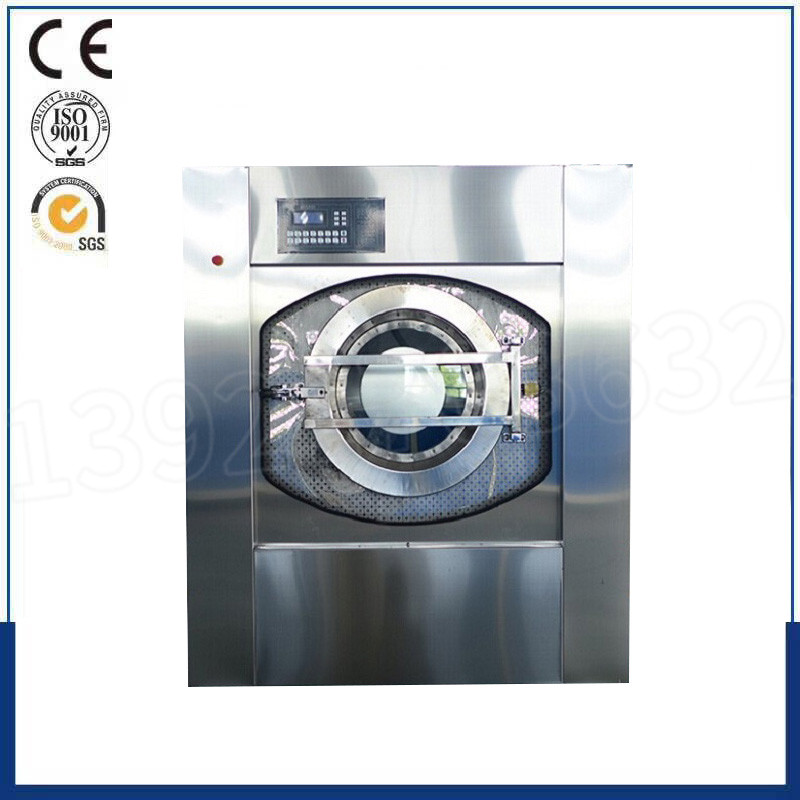

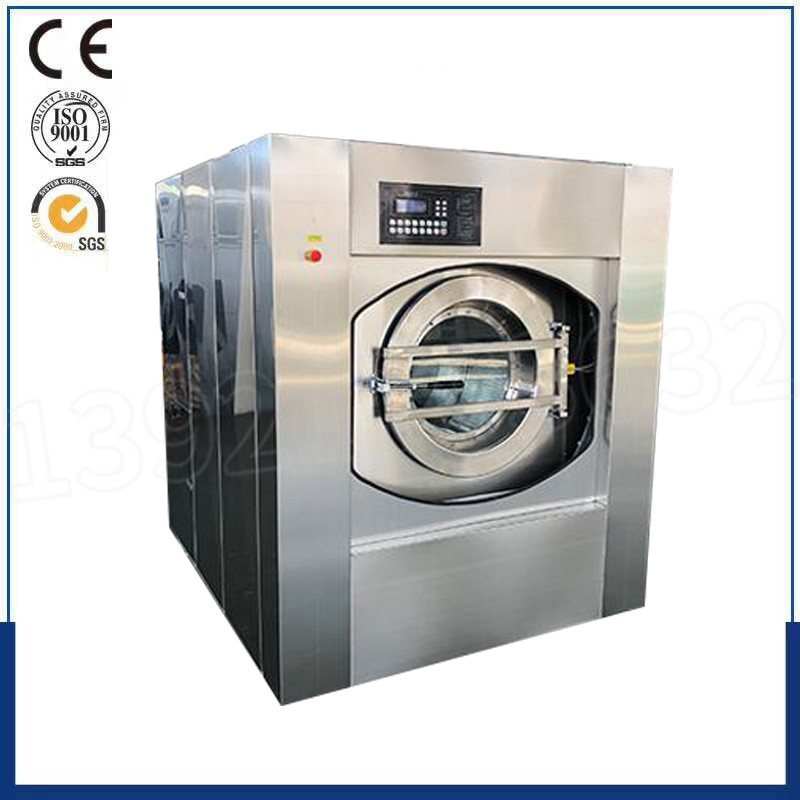

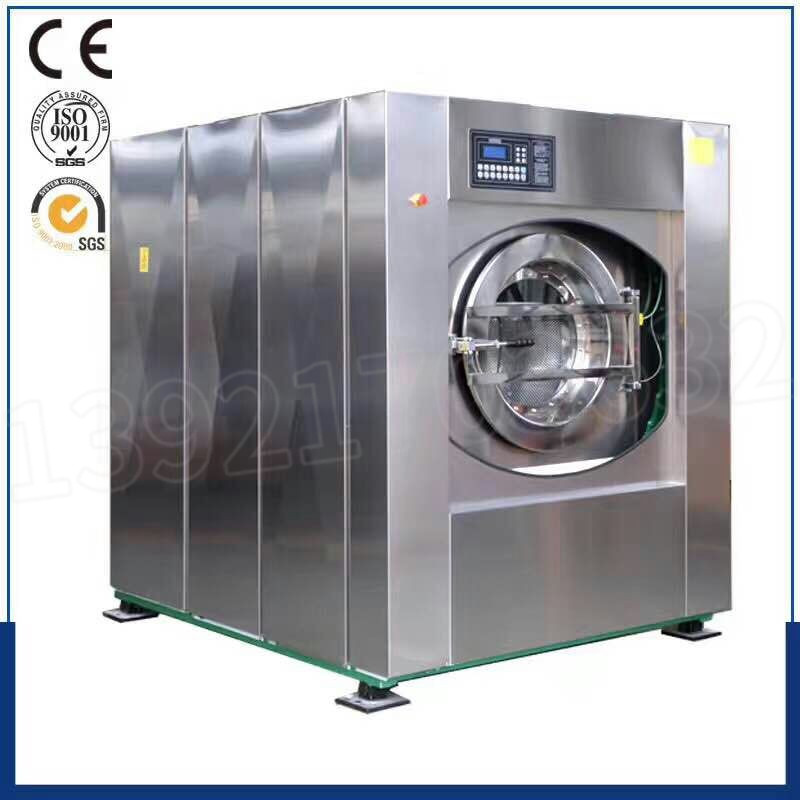

15kg-30kg fully automatic washing machine

  • 15kg-30kg fully automatic washing machine
  • 50kg-70kg fully automatic washing machine
  • 100kg fully automatic washing machine
  • 120kg fully automatic washing machine

一、(Main Technical specifications)



Type


XTQ-15

XTQ-20

XTQ-30

XTQ-50

XTQ-70

XTQ-100

XTQ-120

 rated capacity


Min

kg

10

15

20

35

50

70

90

Max

kg

15

20

30

50

70

100

120

Drum


Diameter

mm

636

700

900

1080

1080

1200

1300

Diameter deepness

mm

470

500

500

575

730

856

900

Overall Dimension


Hight

mm

1300

1400

1635

1800

1800

2030

2100

Length

mm

1240

1260

1460

1610

1760

1990

2195

Width

mm

1000

1050

1400

1650

1550

1690

1790

Drum speed


Washing rotate speed

r/min

45

45

36

35

33

31

30

Uniformity speed

r/min

90

85

80

75

70

65

60

Mid speed

r/min

450

450

420

380

350

310

310

High speed

r/min

890

890

780

760

680

680

650

Motor

kw

2.2

2.2

4

5.5

7.5

7.5

11

Draining valve

mm

φ70

φ70

φ100

φ100

φ100

φ140

φ100-2

Filling with water


Hot water pipe


3/4"

3/4"

3/2"

3/2"

3/2"

3/2"

2"

Cold water pipe


3/4"

3/4"

3/2"

3/2"

3/2"

3/2"

2"

Steam pipe


3/4"

3/4"

1"

1"

1"

1"

1"

Power supply


Standard:380+N-3PH-50HZ


2、 Product Introduction

The fully automatic washing machine has a full computer LCD human-machine dialogue operation interface, with a large Chinese display screen. There are 30 different washing programs to choose from, which can meet any washing requirements and fully realize the automation of washing, bleaching, jigging and other processes. This fully automatic washing machine adopts a suspended vibration avoidance structure, equipped with a spring damping system, which is ultra-low in vibration and can be safely placed on any floor without the need for foundation. The fully automatic washing machine adopts an imported frequency conversion system, which is convenient for speed regulation, stable for starting, low in noise, and has obvious energy-saving effects. The transmission structure is simple and reliable. The fully automatic washing machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care.
