Japanese washing machine series

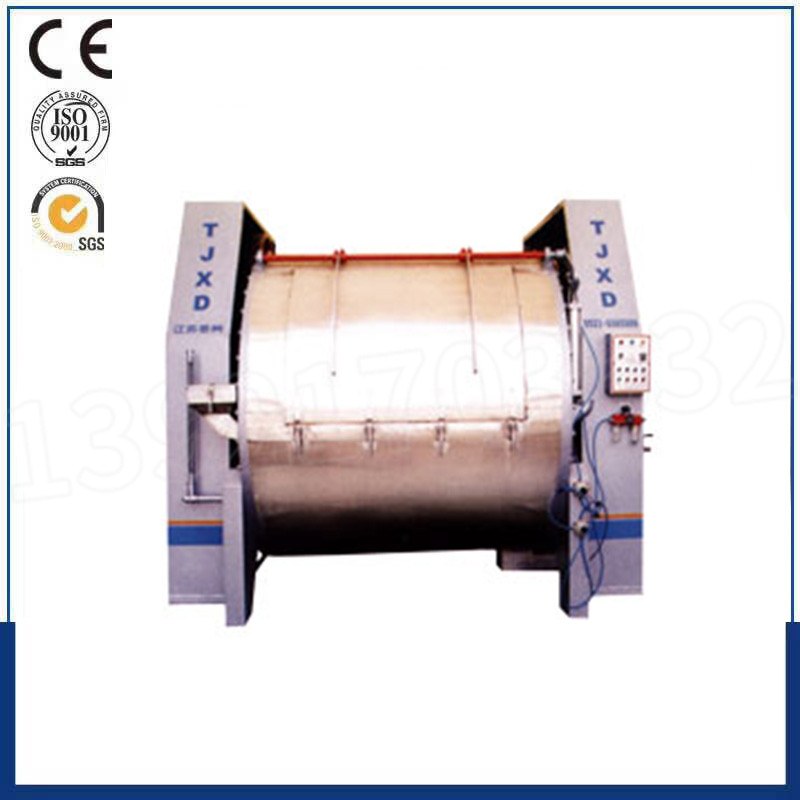

Japanese washing machine

  • Japanese washing machine

一、Main technical parameters of Japanese washing machines



Model name

GX200

GX270

GX300

capacity(kg)

200

270

300

Inner cylinder size mm

φ1300×1500

φ1800×1500

φ1800×1650

speed r/min

28

27

27

power kw

5.5

11

15

vapor pressure(Mpa)

0.4-06

0.4-06

0.4-06

water consumption kg

1430

1750

2100

Washing Time min

20-40

20-40

20-40

Overall dimensions mm

2900×1360×2210

2950×2150×2500

3150×2150×2500

二、Main technical parameters of the dryer


SWA801-30

SWA801-50

SWA801-100

HGQ100

HGQ-120

HGQ-150

Maximum capacitykg

30

50

100

100

120

150

內(nèi)筒尺寸 mm

φ900×800

φ1168×1070

φ1320×1100

φ1500×1000





Inner cylinder speedr/min

27

27

27

27

27

27

Steam pressureMpa

0.294-0.588

0.294-0.588

0.294-0.588

0.294-0.588

0.6

0.294-0.588

power Kw

2.2

3

404

3.7

7.4

6.6

Overall dimensions mm

1070×1300×1850

1660×1230×2270

1480×1900×2300

1480×1875×2380

1900×2030×3205

1765×2225×2350
