Industrial folding machine series

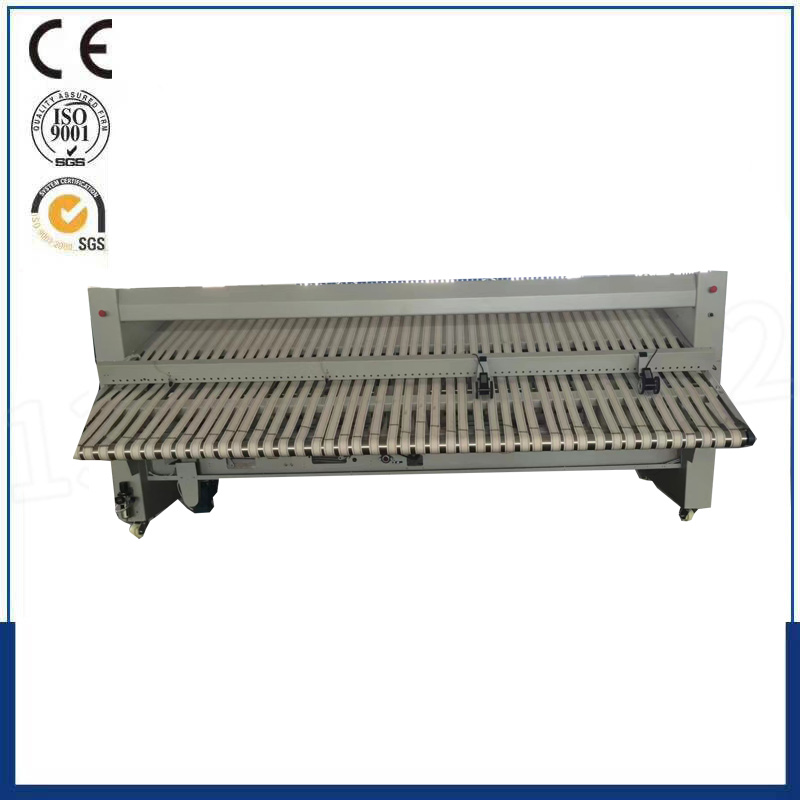

Industrial folding machine

  • Industrial folding machine
  • Industrial folding machine

一、(Main Technical specifications)


 Item name

 Unit

ZD3000-v

ZD3300-v

 Folding length(max.)×width

mm

3000

3300

 Maximun folding hierarchy

次/層

5/32

5/32

 Maximun folding speed

m/min

50

50

 Rated voltage

V/hz

380/50

380/50

 Rated input power

Kw

1.87

1.87

 Inlet diameter

mm

φ12

φ12

 Minimum inlet pressure

Mpa

0.7

0.7

 Dimension(L×W×H)

mm

4160*2930*1750

4460*2930*1750

 Machine weight

kg

1430

1630

 Weight

KG

1430

1630


2、 Product Introduction

1. It adopts a large screen dot matrix LCD display and intelligent control system, and has a good Chinese and English human-machine dialogue interface;

2. Complete 5 folds under computer monitoring, and the number of vertical and horizontal folds can be freely programmed according to the weaving amplitude and thickness;

3. Adopting a highly intelligent infrared detection system, eliminating traditional mechanical pulse counting devices;

4. It has a dual channel folding function, which can double the ironing and folding ability of small linen and reduce energy consumption;

5. The operating speed can be adjusted in a wide range and can be matched with various corresponding ironing machines;

6. It has self diagnosis function, complete safety protection system, and self maintenance function of detection points;

7. The computer board adopts relay output, without the need for intermediate relays, reducing fault points and facilitating maintenance and testing;

8. All control components adopt DC 24V low-voltage components, which are safe and reliable, and have no pollution to the surrounding environment;

9. Each control valve adopts pneumatic control, with fast and reliable action, and no pollution to the surrounding environment;

10. This device is equipped with safety switches in multiple places, ensuring reliable use.
